1994 #2

1993 　 1994 　 1995 　 1996 　 1997 　 1998 　 1999 　 2000 　 2001 　 2002 　 2003 　 2004

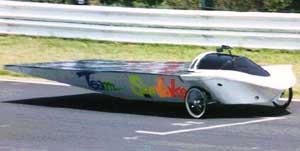

outline 　 　 This machine was designed for our first challenge to Solar Car Race in Suzuka, most famous solar car race in Japan. 　 specifications 　 　 length 5560mm width 1990mm height 1000mm weight 230kg wheels 3-wheels ( 2 front, 1 rear) tires 20inch chassis carbon composite body Dyneema ® (TOYOBO's ultra-high-strength polyethylene fiber >>more info) carbon fiber composite suspension double wishbone on front wheels brakes hydraulic disc brakes on front wheels cantilever on rear wheel solar cells plycrystalline silicon 799W motor DC brushless 3.2kW batteries lead-acid storage batteries 1.5kW 　 　 　 comments 　 　 This machine was very sturdy. We had no problems in 2 races we participated in. 　 results 　 　 1994.07　Solar Car Rally in Shinasahi, Japan class 2nd 1994.08　Solar Car Race in Suzuka, Japan class 7th
