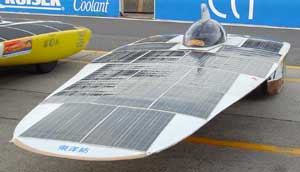

2002 #10

1993 　 1994 　 1995 　 1996 　 1997 　 1998 　 1999 　 2000 　 2001 　 2002 　 2003 　 2004

outline 　 　 We have stretched our winning streak to 3. We felt that we have run out of ideas & money for modifications. But we had to hang on to 1st placing. These 4 modification were done this year. 1. remodeling the underbody and A-arm to reduce weight. 2. Changing the front tires to decrease resistance. 3. Filling tires with nitrogen 4. Taking the heat of MPPT by a spot air conditioner while charging. Those would improve efficiency by 2 to 4 %. 　 specfications 　 　 length 5000mm width 1750mm height 1000mm weight 185kg wheels 3 wheel (2 front, 1 rear) tires 14inch Dunlop Solar Max chassis carbon composite monocoque body Zylon ® (TOYOBO's super fiber >>more info) foamed polystyrene suspension double wishbone on front wheels brakes hydraulic disk brakes on front cantilever on rear solar cells single crystal silicon 800W motor NGM's wheel-in DC brushless 9.0kW batteries lead-acid storage batteries 2.0kW 　 　 　 results 　 　 2002.07 HONDA Dream Cup in Suzuka total 6th class champ 2002.10 Asahi Solar Car Rally in Kobe
